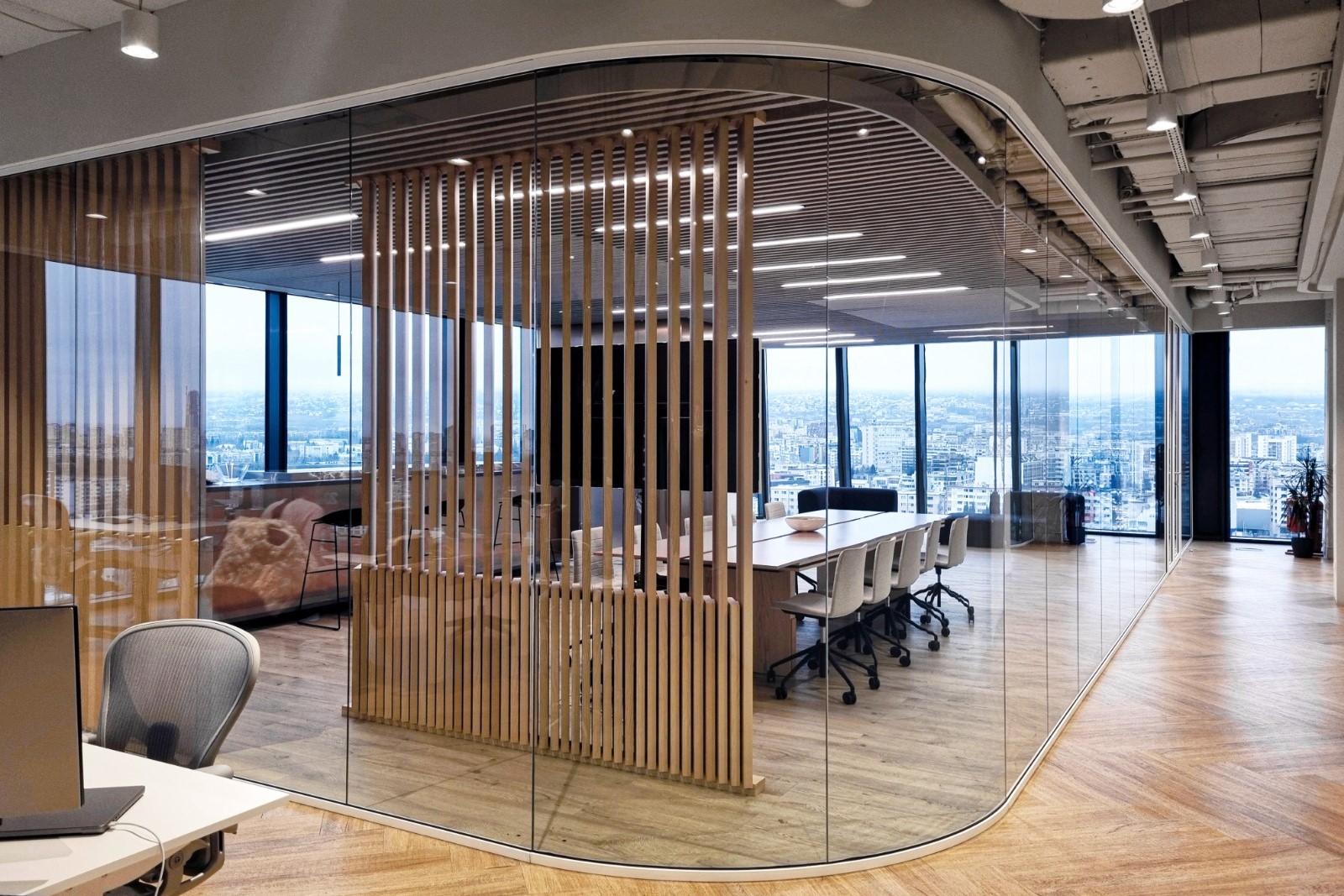

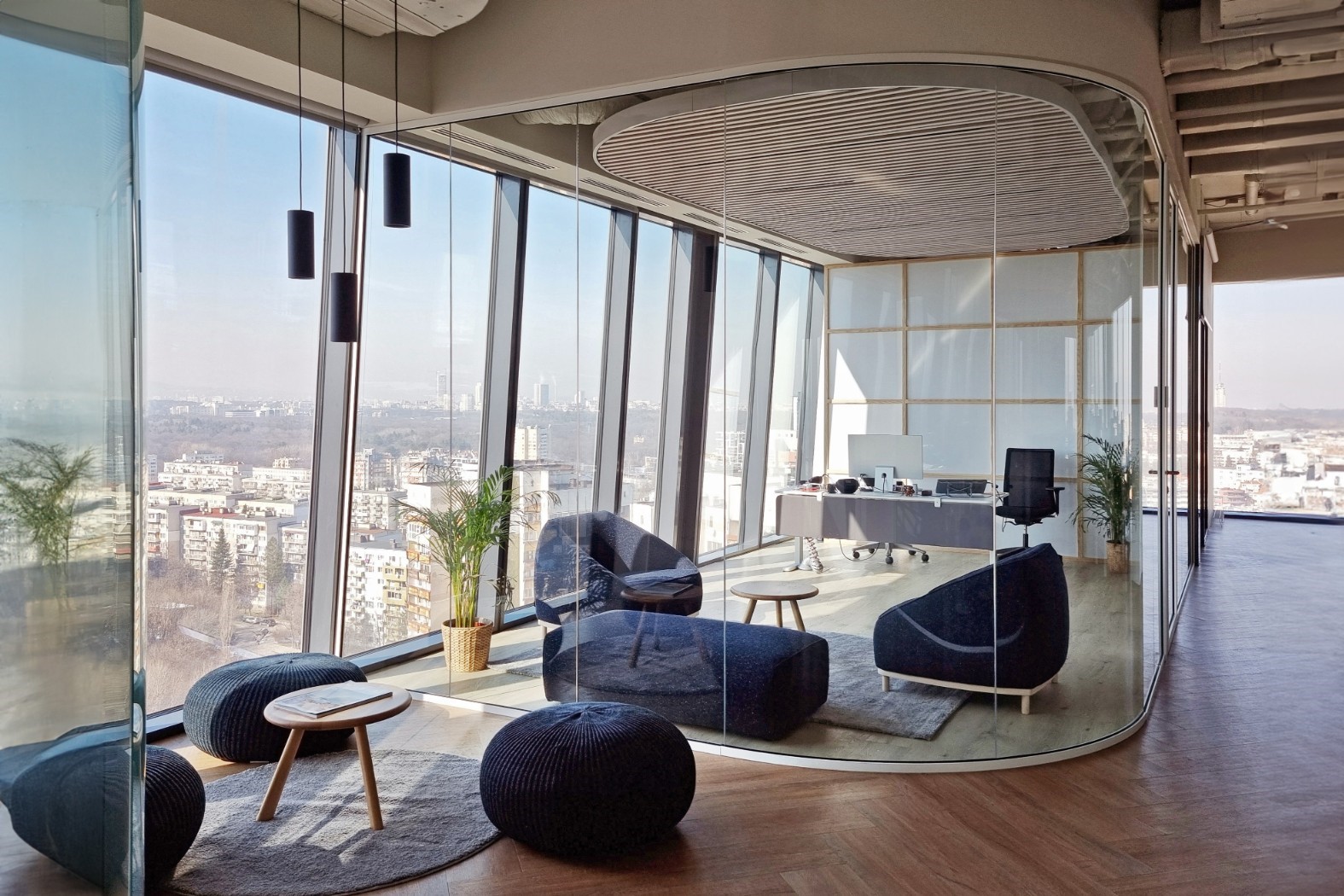

Curved glass partitions

The curved glass partition solution is specifically designed for office construction, and the 'Office' system stands out with its light and simple structure. It allows the use of tempered or laminated glass (including laminated glass with sound-insulating film). One of the system's main advantages is its airtightness, which ensures enhanced sound insulation properties. This applies not only to fixed sections but also to door leaves.

DIMENSIONS

Profile thickness 35mm
Glass height up to 3400mm
Glass width up to 1500mm

ACOUSTIC INSULATION

ESG 10 Rw 33dB
VSG 55.1 Rw 35dB
VSG 66.2 Rw 37dB
VSG 66.2 Si* Rw 39dB
VSG 88.2 Si* Rw 40dB

TYPE OF GLASS

ESG 10 - 12mm
VSG 55.1, 66.2, 88.2

MATERIAL / FINISH

Anodized aluminium
RAL aluminium

SUITABLE FOR INSTALLATION

Residential properties
Offices
Commercial properties
Warehouses

APPROVAL DOCUMENT

ETA-16/0446

ADDITIONAL FILES

English
